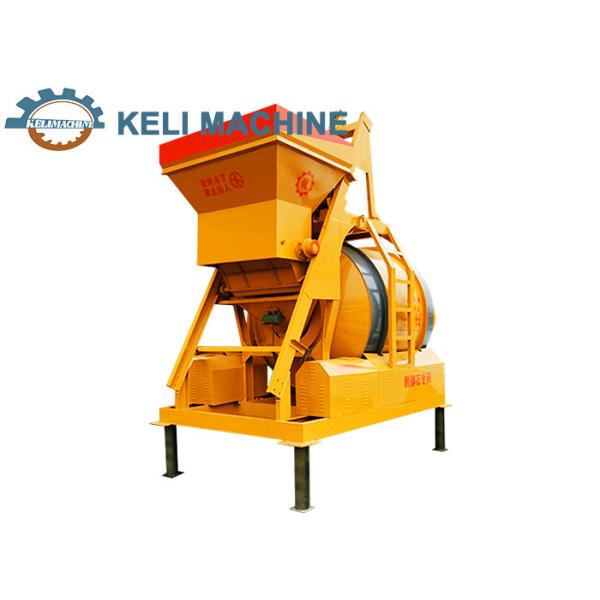

Building Material Mixture Machine JZM500 Feed Capacity 1200L JZM Mixer

The main technical parameters
Model		JZM500
Output capacity	(L)	500
Feed capacity	(L)	800
Productivity	(m³/h)	18-20
Mixing barrel speed	(r/min)	15
Water supply accuracy		error≤2%
Stirring motor	(kw)	2*5.5
Lift motor	(kw)	5.5
water pump motor	(kw)	1.1
Tire specifications		7-16
Maximum towing speed	(km/h)	20
Dimensions (L* W*H)	(mm)	3000*2100*2500
Total Weight	(kg)	1900

Details	National standard thickened drum: using wear-resistant thickened manganese plate, the mixing drum has large capacity, strong support, pressure resistance, wear resistance, and is more reliable.
	Protective baffles: There are full-enclosed baffles on the left and right sides of the drum to protect the supporting wheels and motors, dustproof, waterproof, easy to maintain, and prolong service life.
	The pure copper motor is only replaced but not repaired: the manufacturer cooperates with the copper core motor, and during the warranty period, it is only replaced but not repaired, so that you can worry-free after sale.
	Rubber support roller: rubber support roller friction transmission, low noise, stable operation, especially suitable for construction in urban residential areas.
Feature	Wide application range, high mixing quality and high production efficiency
	Low energy consumption, low noise, reasonable structure and convenient operation
	Fast unloading speed, long service life of liners and blades
	Real materials, copper core motor, thickened steel plate
Scope of application	Road construction, house construction, building construction, dam construction, bridge construction, port construction

Other Models
Model	JZM750	JZM1000
Output capacity(L)	750	1000
Feed capacity(L)	1200	1200
Productivity(m³/h)	30-35	35-40
Mixing barrel speed(r/min)	12.26
Water supply accuracy	error≤2%	error≤2%
Stirring motor(kw)	2.2*7.5	2*11
Lift motor(kw)	7.5	7.5
water pump motor(kw)	1.1	1.1
Tire specifications	7.50-16	6.50-16
Maximum towing speed(km/h)	20	20
Dimensions (L* W*H)(mm)	3900*2200*2900	4200*2100*2700
Total Weight(kg)	2400	2900

A mixer is a machine with blades that rotate in a cylinder or tank to mix various raw materials into a mixture or suitable consistency. Mixers are divided into forced type mixers, single horizontal shaft mixers, double horizontal shaft mixers, etc. Mixers are widely used as efficient equipment for mixing, dispersing, and dissolving coatings and solids, as well as chemical products such as inks, pigments, adhesives, etc. This equipment is composed of five parts: hydraulic system, main transmission, mixing system, guiding mechanism, and electric control box. The structure of each part of the equipment is tight and reasonable.
